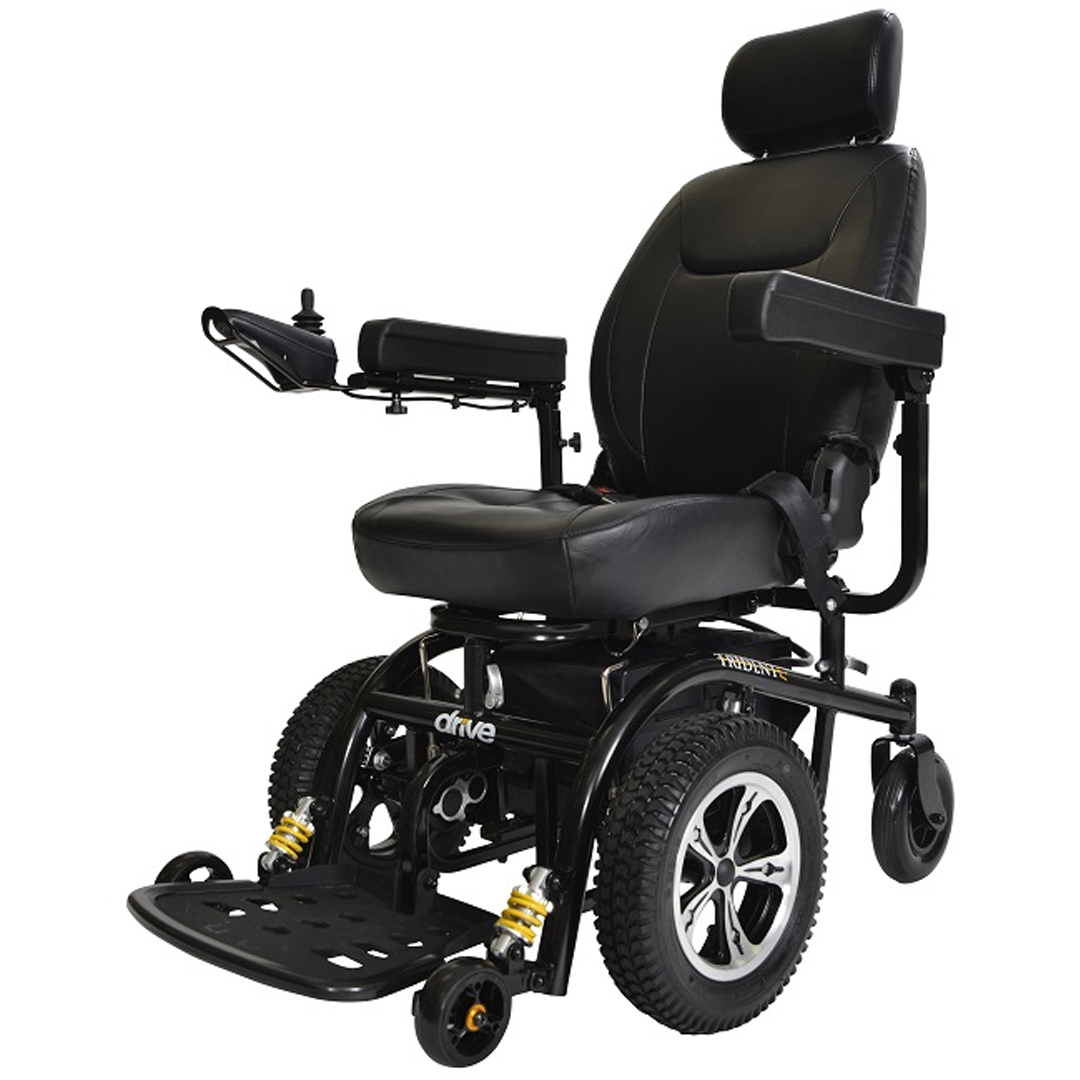

Drive, Trident Power Wheelchair

  • $0.00


Product Description

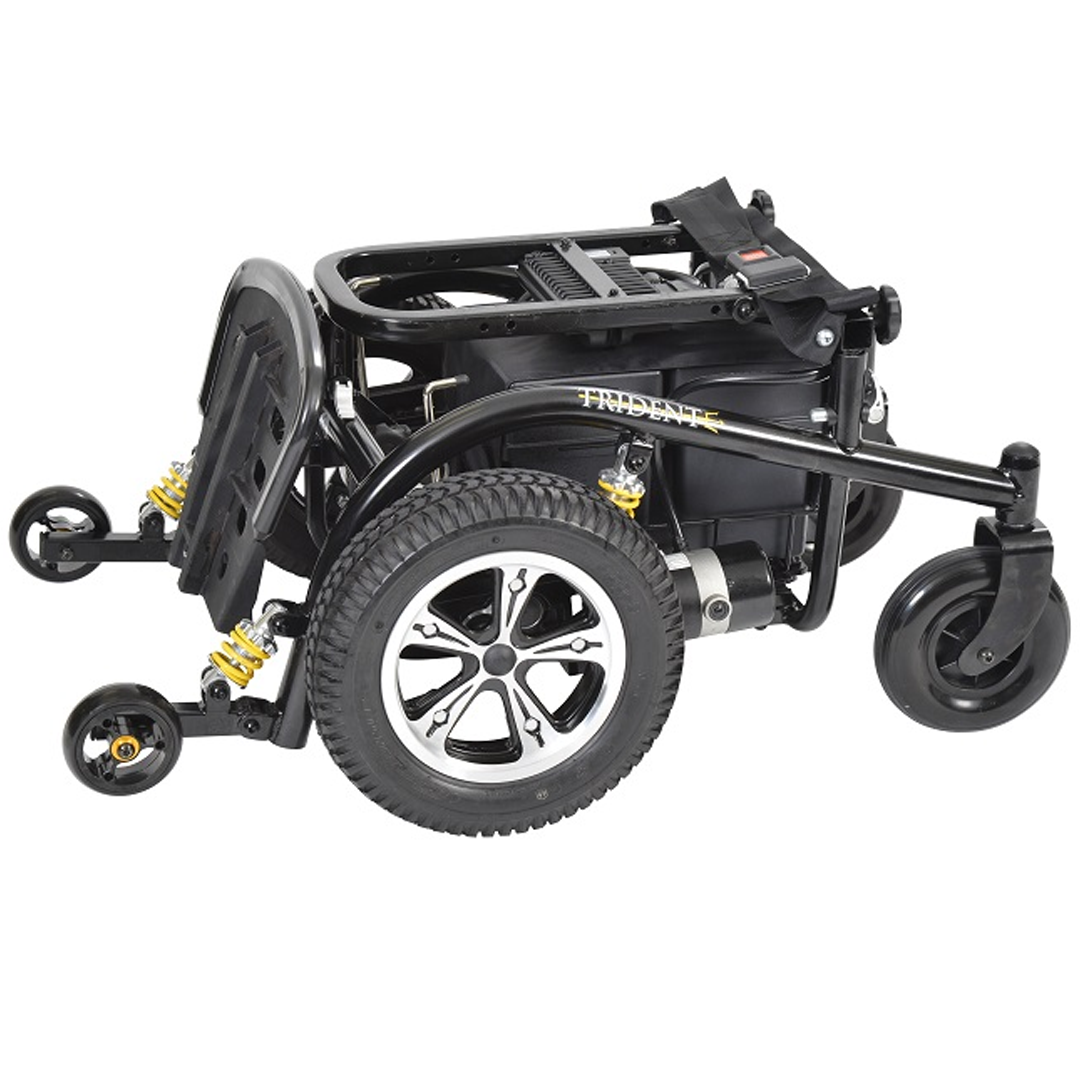

    •  Shroudless design offers easy access to internal components and batteries
    • Semi-reclining seat with adjustable headrest offers three height adjustments and two depth options

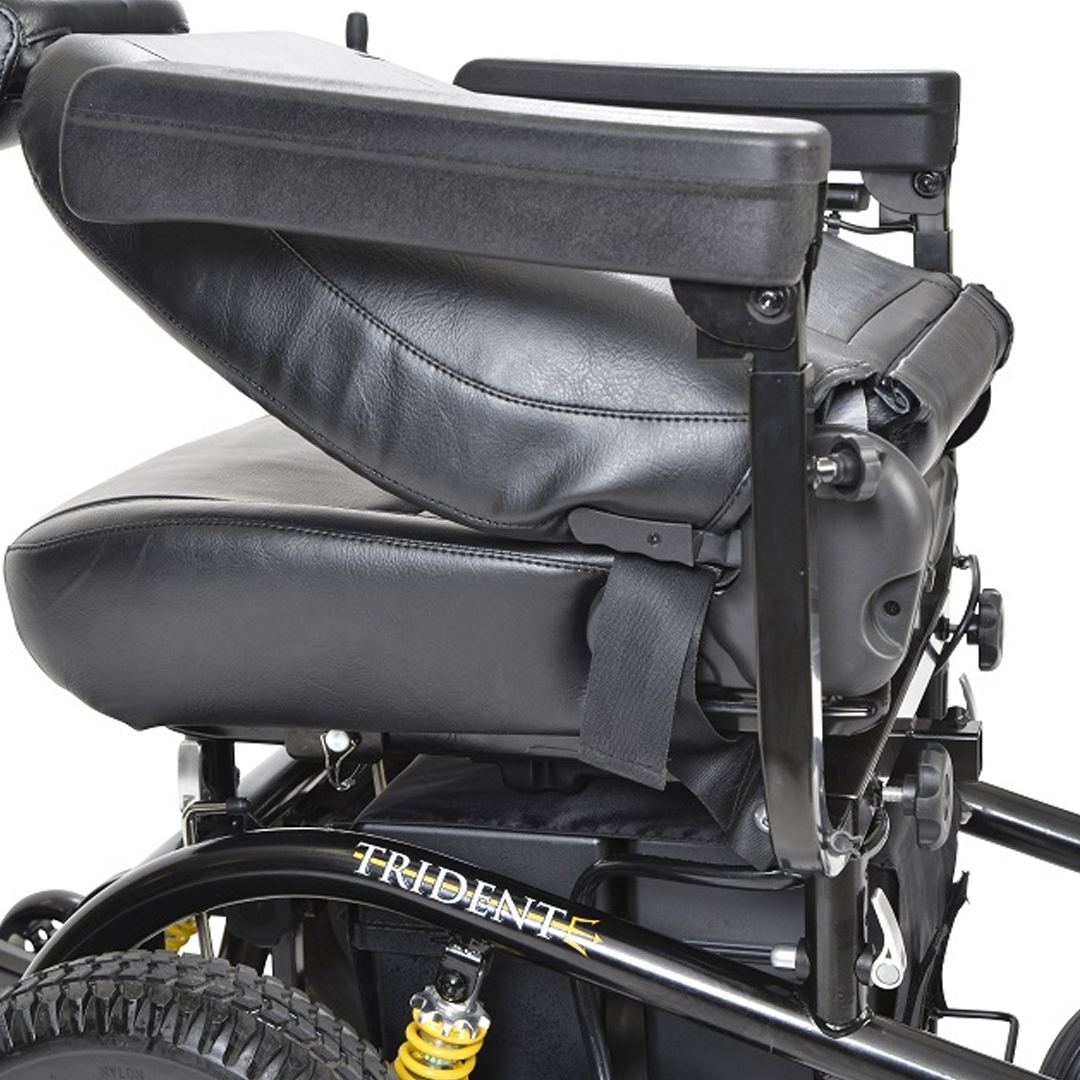

    • Armrests are padded, adjustable and removable
    • Available with 18” or 20” width Captain’s Seat

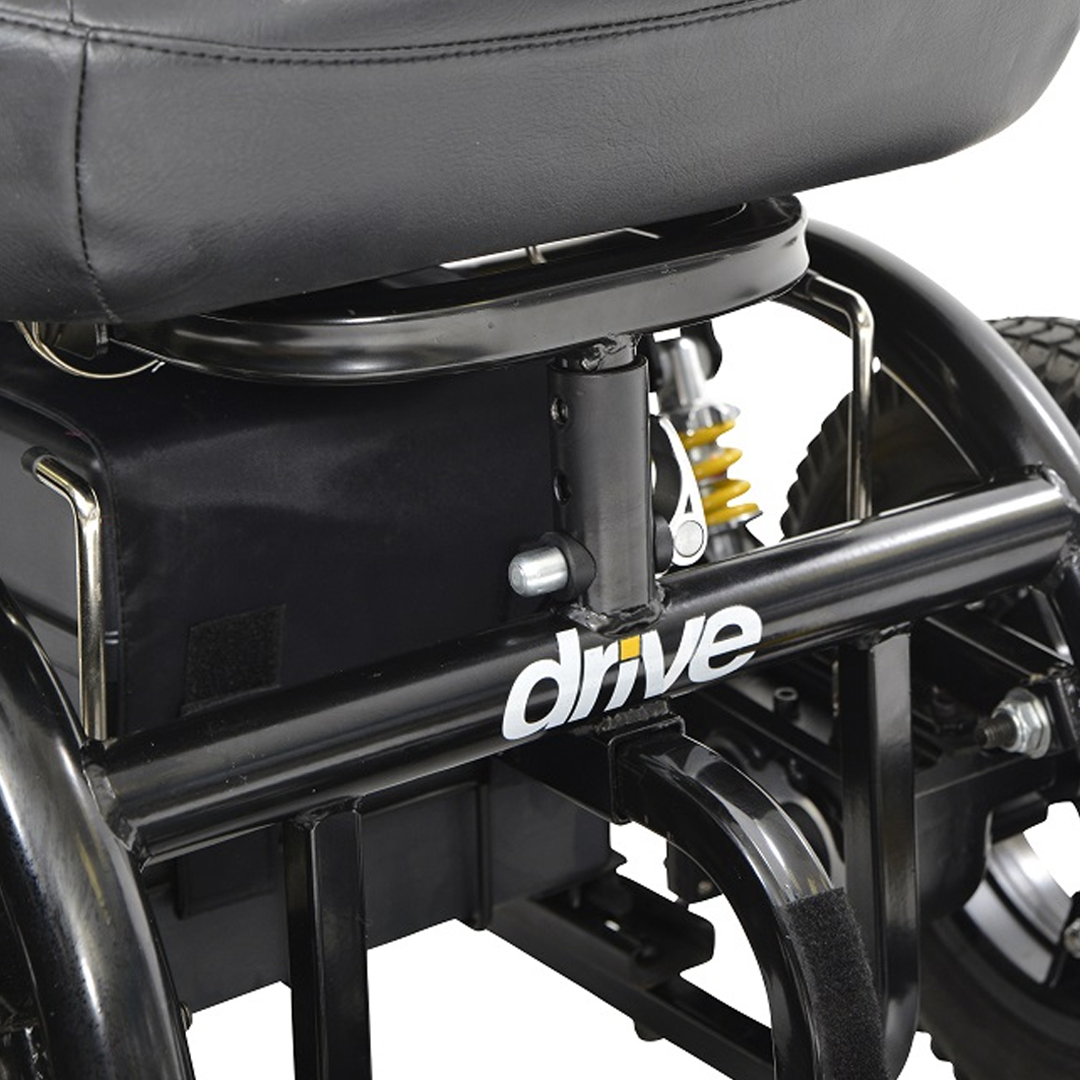

    • Quick-release pins allow easy seat removal
    • Adjustable, flip-up footplate includes rubber front bumper to prevent damage
    • Positioning belt included
    • Seat position can be adjusted forward and backward
    • Programmable controller
    • Optional swing-away controller arm sold separately
    • Optional elevating leg rests sold separately
    • Black, flat-free non-marking wheels
    • Large, front anti-tip wheels feature suspension for safety, smoother ride and enhanced obstacle handling
    • Controller is protected by metal frame
    • Easy free-wheel operation
    • Slide-out battery tray
    HCPCS KO823
    Weight Capacity 300 lbs.
    Top Speed 4 mph
    Maximum Range 15 miles
    Turning Radius 24"
    Climbing Angle 7.5°
    Ground Clearance 2"
    Dimensions 42.25" (L) x 27.25" (W)
    Floor-to-Seat Height 21" - 24"
    Controller PG VR2 50A
    Motors (2) 24V x 320W x 4600 rpm
    Batteries (pair) 12V x 36AH (U1)
    Charger 4A Offboard
    Brakes Electromagnetic
    Caster Wheels 8" x 2" Solid
    Drive Wheels 14" x 3" Flat-free
    Base Weight 82 lbs.
    Battery Weight (pair) 53 lbs.
    Seat Weight 51 lbs.
    Total Weight 186 lbs.
    Seat Dimensions 18” (W) x 18” (D) | 20” (W) x 18” (D)
    Warranty of Frame Lifetime
    Warranty on Electronic Controller/Drive Train Components 14 Months
    Warranty on Batteries 12 Months
