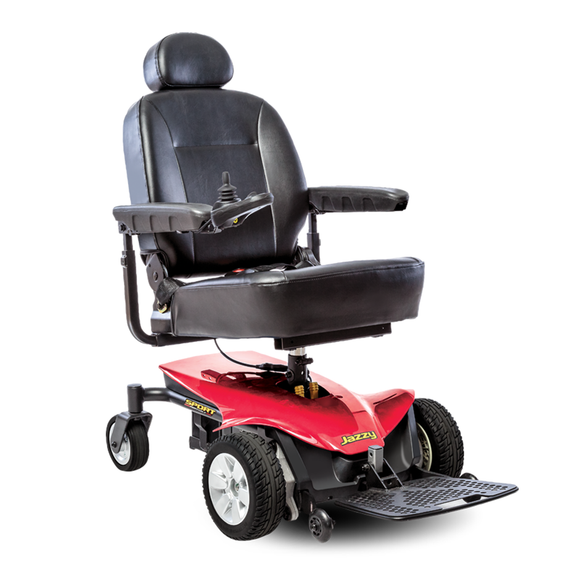

Jazzy®Sport Portable Power Wheelchair
FDA Class II Medical Devices
Pride FDA Class II Medical Devices
are designed to aid individuals with mobility impairments
The Jazzy® Sport Portable provides a blend of power, performance, style and portability.
In-line, front-wheel drive technology provides excellent stability and maneuverability for a solid performance indoors and out while simple disassembly makes it convenient to transport.
- Easy disassembly for convenient transport
- In-line, front-wheel drive technology
- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
SPECIFICATIONS
| Model |
Jazzy Sport Portable
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 25.5" |
| Width1 | 22.75" |
| Length1,2 | 34.75" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 1.5" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 9" solid |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 21.5" - 23.5" |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3A, off-board |
| Per-Charge Range3,6 | Up to 11 miles |
| Battery Weight5 | 25 lbs. each |
| Weight of Heaviest Piece4 | 48 lbs. |
| Standard Seat Weight | 43 lbs. (comfort, high-back) |
| Standard Seat Size | 18"x18"-20" |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors |
