Jazzy® Elite HD

  • $0.00


Jazzy® Elite HD | Product Description

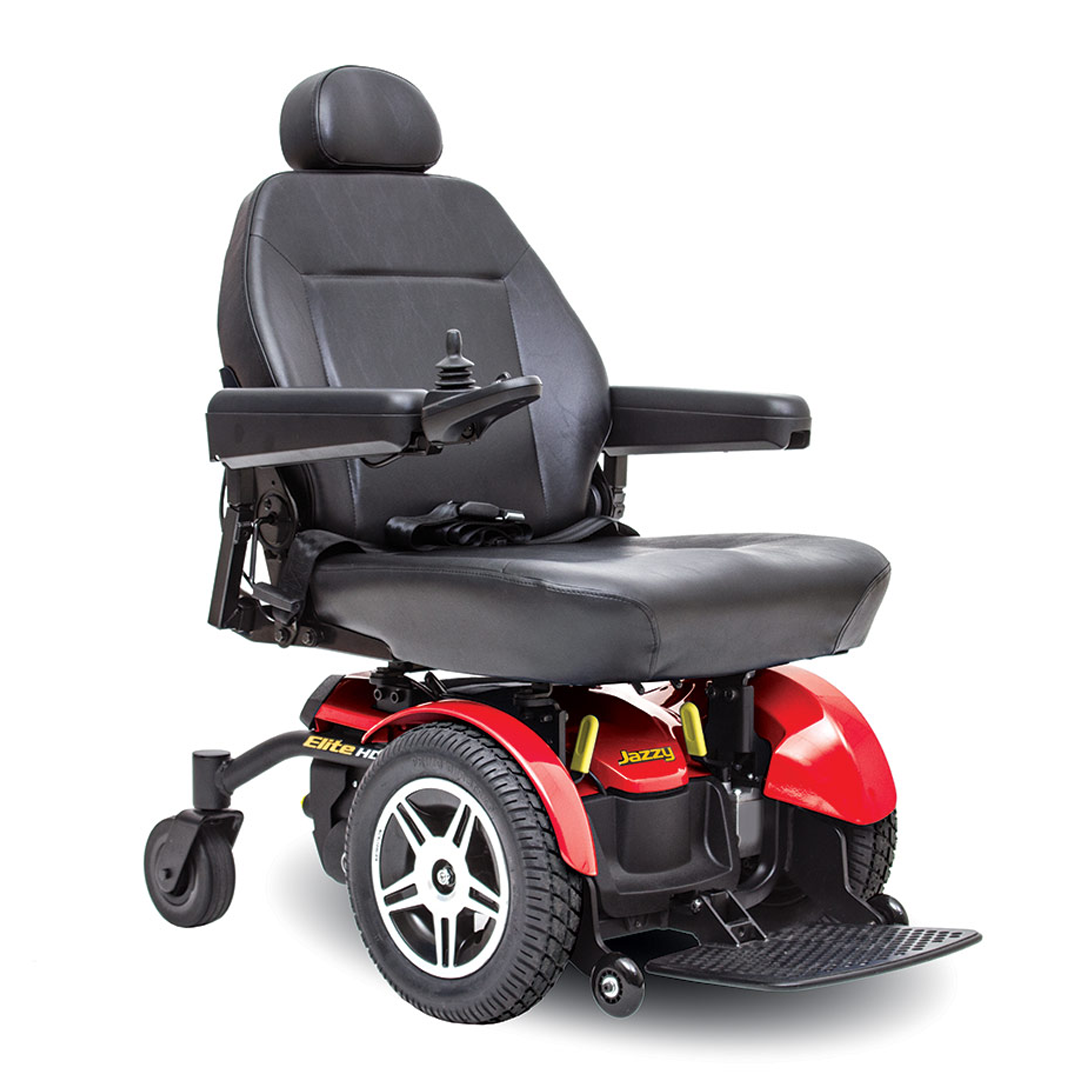

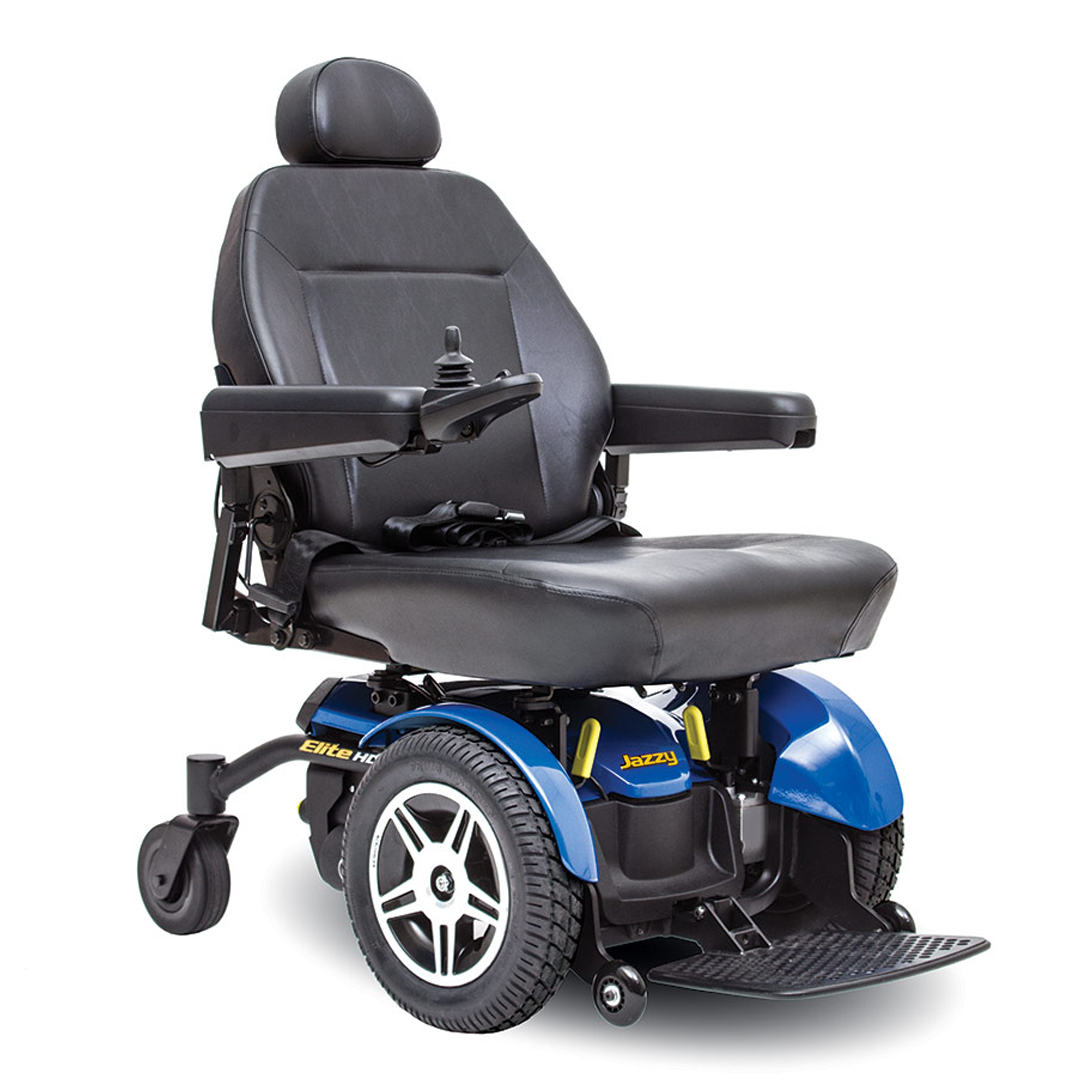

The Jazzy® Elite HD features two-motor, front-wheel drive technology and heavy-duty construction.

The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces.

Large front wheels add extra absorption for superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.

  • Enhanced 450 lbs. weight capacity
  • Front-wheel drive design for excellent maneuverability
  • 14" knobby tires and optimum weight distribution provide superior traction

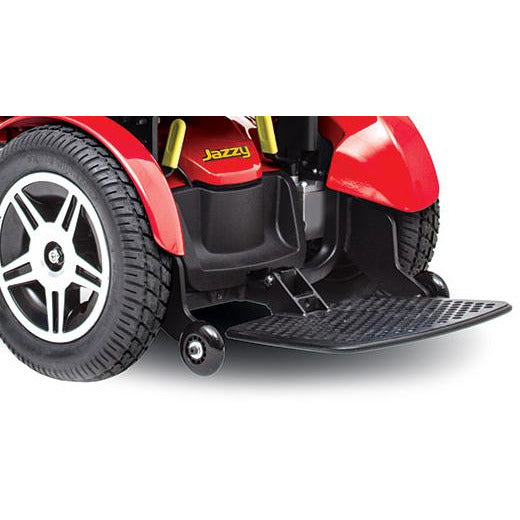

  • Larger foot platform
  • 60 amp controller
  • Extended 13-month limited warranty

SPECIFICATIONS

Model
Jazzy Elite HD
Weight Capacity 450 lbs.5
Turning Radius1 24"
Width1 24.25"
Length1,2 35.5"
Maximum Speed3 Up to 4 mph
Ground Clearance1 3"
Front Wheels 3" solid anti-tips
Drive Wheels 14" solid
Rear Wheels 6" Solid casters
Drivetrain Two-motor, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 24"W x 24"D
High-Back Seat-to-Floor Range 20" - 22"
Synergy® Seating 24"W x 24"D
Synergy® Seat-to-Floor Range 15.75" - 17.75"
Standard Electronics 60A, Dynamic Shark
Battery Size (2 required) 12 volt, NF-22
Standard Battery Charger 5A, off-board
Per-Charge Range3,7 Up to 9.8 miles
Battery Weight6 37 lbs. each
Weight of Heaviest Piece4 99 lbs.
Standard Seat Weight 52 lbs. (high-back)
Standard Seat Size 20" x 18"-20"
Medicare Code Coverage Group 2: Heavy Duty (K0824/K0825)
Warranty 5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
